Band Saw Guides

Carter guide assemblies are available for upgrading and replacement of worn or inferior guides. Our two main lines consist of the Micro-Precision and Guidall guides.

The Micro-Precision guides provide full blade contact via Tefloy rub blocks for maximum accuracy. They are well suited for general purpose work. Available for saws from 14" to 42".

The Guidall line which includes our 2000 series guides, provides all-ball-bearing support for smooth low friction running. Good for general purpose work and resawing. Also available for saws from 14" to 42"

Band Saw Guides

Guide Upgrade Kits

Guide Retrofit Upgrades

If your looking to upgrade or retrofit your existing saw with new Carter guides check here first to see if we have an existing kit for your saw. If you don't see your saw listed please use the custom guide kit request form as we probably still have a solution. more info >


2300

2300 Series

2000 series all ball-bearing guides are ideal for saw conversions where space is at a premium. The 2300 guides are suitable for machine sizes 14" to 20" Used in many of our guide conversion kits. more info >


Micro-Adjust Guide

The Micro-Adjust guides are suitable for machine sizes 14" to 20" Used in many of our guide conversion kits. Tool-Less Micro-Adjustable guides provide your saw with reduced blade friction, improved cutting accuracy, and are adjustable for blade widths from 1/8" to 1". The Micro-Adjustable guides have tool free adjustment of both side support and thrust bearing assemblies.

This version has a single mounting hole in the rear which accepts a 7/16" stud. Typically used for upper guide replacement. more info >


2400

2000 series all ball-bearing guides are ideal for saw conversions where space is at a premium. The 2400 guides are suitable for machine sizes 16" to 24" more info >


Guidall 400 Block Models

Guidall 400 Block Models

The Guidall 400 Block Model Band saw Guides are specifically tailored for applications where blade material clearing is necessary, such as when used with high pitch woods, plastics and lubricated metal cutting. more info >


Guidall 400 Roller Bearing Models

Guidall 400 Roller Bearing Models

Can be assembled for right or left hand machine mounting - Provides exact steady support of blade - Eliminates friction - Outperforms any other guides on the market - 400 guide is suitable for greater speed and load capabilities - Ball bearings are lubricated and sealed for life - High tensile strength alloy guide body - Easy bearing adjustments - Models available with Tungsten Carbide wear face thrust wheels for higher volume, heavy duty applications more info >


Guidall 500

Guidall 500

The Guidall 500 models provide all ball-bearing design for rugged-duty applications such as resawing. Bearing design promotes cooler running through reduced friction. Ideal for saws from 14" to 30" more info >

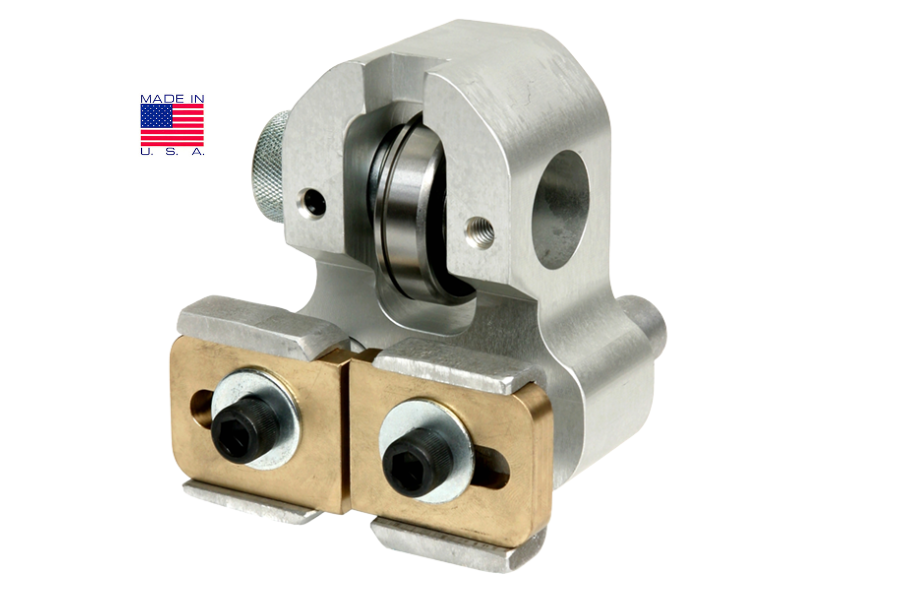

Guidall 600 Block Models

Guidall 600 Block Models

The Guidall 600 Block Model Bandsaw Guides are specifically tailored for applications where blade material clearing is necessary, such as when used with high pitch woods, plastics and lubricated metal cutting. more info >


Guidall 600 Roller Bearing Models

Guidall 600 Roller Bearing Models

The Guidall 600 models provide all ball-bearing design for rugged-duty applications such as resawing. Bearing design promotes cooler running through reduced friction. more info >


Micro-Precision model 10

The Micro-Precision ball bearing rub block guide provides full contact with the blade for maximum accuracy. Well suited for general purpose work. Teflon impregnated self-lubricating rub blocks. The CP10 version is well suited to 30" to 42" band saws. more info >


Micro-Precision model 20

Micro-Precision Model 20

The Micro-Precision ball bearing rub block guide provides full contact with the blade for maximum accuracy. Well suited for general purpose work. Teflon impregnated self-lubricating rub blocks. The CP20 version is well suited to 16" to 36" band saws. more info >

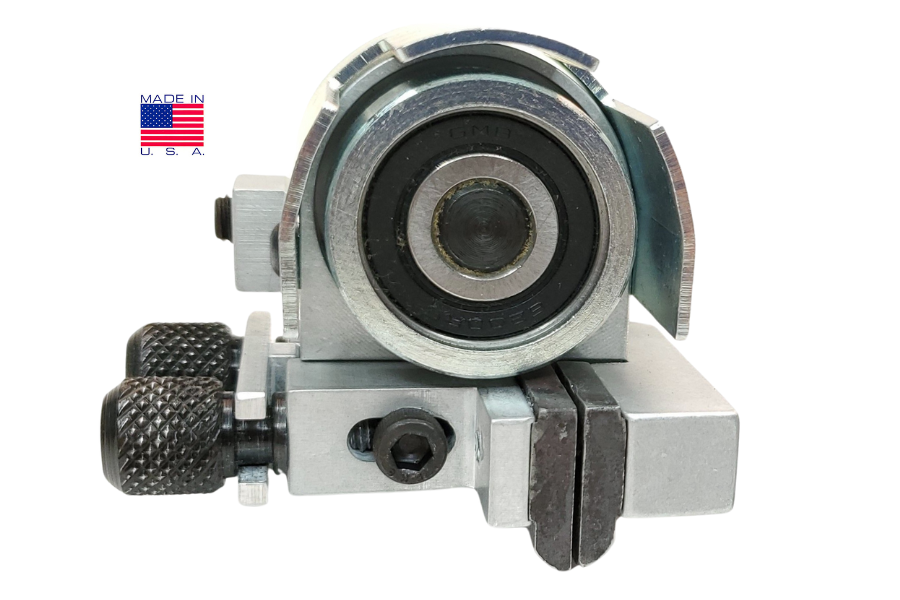

Micro-Precision model 30

Micro-Precision Model 30

The Micro-Precision ball bearing rub block guide provides full contact with the blade for maximum accuracy. Well suited for general purpose work. Teflon impregnated self-lubricating rub blocks. The CP30 version can be used in saws from 14" to 20" more info >
